Name: Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: vd3350l
Price: 50,000.00 USD
Availability: InStock

امکانات گالری توضیحات محصول درخواست نقل قول

امکانات

مشخصات

قطر غلتک حداکثر: 450 میلی متر

حداکثر عرض برچسب: 330 میلی متر

تیغه های برش: حداکثر 4 عدد

سرعت برش: حداکثر 27 متر در دقیقه

ضمانت: یک سال

وزن: 1400 کیلوگرم

حداکثر عرض: 288 تا 330 میلی متر

برنامه: برش قالب، لمینیت، برش، برش ورق

برجسته کردن:

Max 27m/min Cutting Speed Laser Die Cutter,Max 330mm Label Width Digital Die Cutting Machine,Max 4pcs Cutting Blades Label Die Cutter

Max 330mm Label Width Digital Die Cutting Machine

Max 4pcs Cutting Blades Label Die Cutter

اطلاعات اولیه

محل منبع: چین

نام تجاری: ECOOGRAPHIX

گواهی: CE

شماره مدل: vd3350l

مدرک: Digital Label Die Cutter VD...0 .pdf

پرداخت

جزئیات بسته بندی: بسته بندی صادرات استاندارد

زمان تحویل: حدود 20 روز

شرایط پرداخت: L/C ، T/T

قابلیت ارائه: 300s

گالری

Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

توضیحات محصول

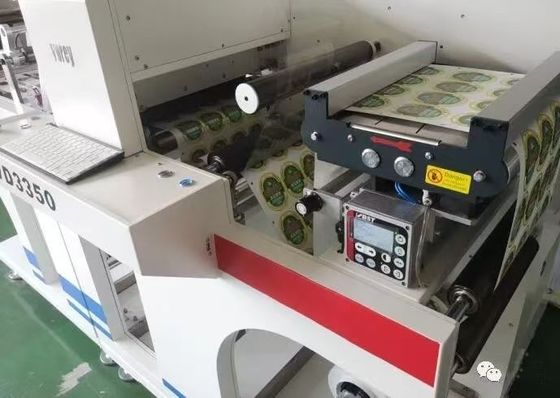

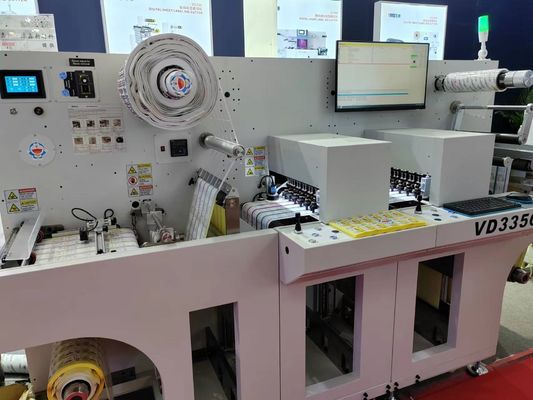

Digital Roll To Sheet Label Laser Die Cutter With Laminating

The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conveyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.

It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications. The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.

With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.

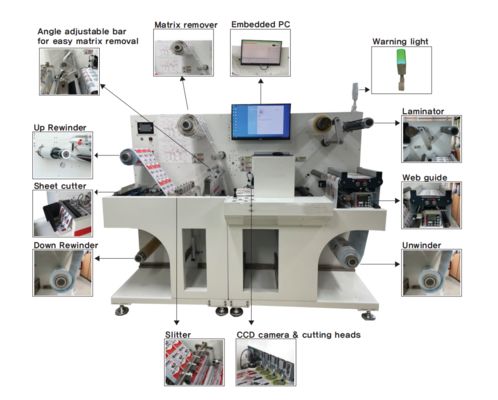

Product Features

High precision feeding system Utilizes ultrasonic web-guide system to ensure perfect material feeding.
Cold laminating Includes cold laminating function for bright, perfect labels. Back liner removal is optional.
Digital die-cutting system Features high precision screw transmission system with maximum speed of 9m per minute. Individual control for 4 heads with auto-adjust distance function.

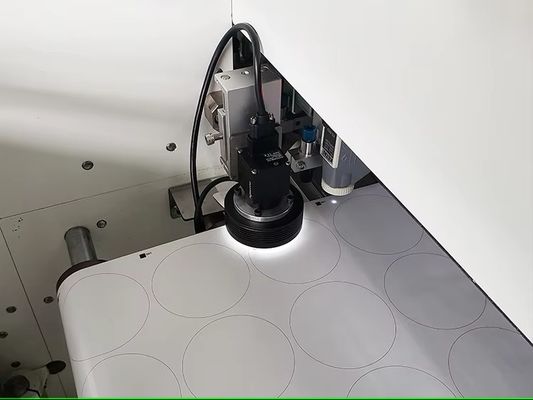

CCD identify system CCD camera position and identify system recognizes sequences for automatic file changing and next graphic cutting.
Waste removing system Dual mechanical force expansion control with multi-angle waste discharge frame ensures uniform waste removal and clean products.
Built-in sheet cutting system Optional built-in PC350 slitter for wired cutting and synchronous die-cutting/sheet cutting.
