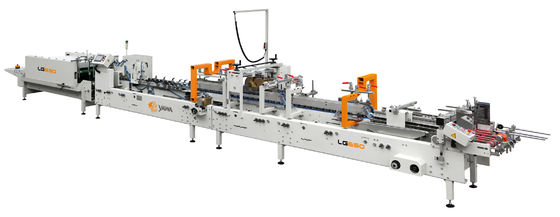

Carton Paper Box Making Machine With Servo Control For Enhanced Accuracy
4/6 Corner Carton Paper Box Making Machine Folder Gluer
We specialize in providing a wide range of equipment, including Digital Inkjet Printers, Digital Label Printers, Digital Corrugated Printers, Foil Stamping and Die Cutting Machines, Paper Box Carton Making Machines, and Flexo Printing Machines.
With over 20 years of exporting experience, we have established partnerships worldwide, collaborating with companies such as Presstek in the USA, TSG in Mexico, and Esen Graphics in Turkey, among others.
Features of Carton Erecting Machine
- Automatic counting of finished products facilitated by a counter device
- Low power load, with options of 5KW and 8KW. Speed adjustment via an inverter ensures greater accuracy
- Equipped with a PLC encoder for high automation, easy operation and adjustment, with minimal faults and convenient maintenance
- Utilizes a servo control system for smoother operation, enhanced accuracy, stability, and minimal vibration
Product Features
- Versatile Automatic Production Line for Sky and Ground Covers
- Integrated Fault Diagnosis Capability
- Automated Paper and Ash Board Suction Functionality
- Precision Cam-driven Paper Feeding Mechanism
- Entire Machine Operated by Panasonic Servo Control System
- Visual Positioning System and Robot Grasping (Positioning Error ≤ 0.1mm)
- Utilizes Yamaha Robot Technology
- Innovative Temperature-controlled Gluing System
- Equipped with Precise Quadrangular Box-holding Manipulator
- Adjustable Folding Ear Length via Precision Sliding Table
- Optional Built-in Constant Temperature System
- High-Definition Camera for Accurate Positioning
Technical Specifications
| Model |
Ecoo-LG800A |
| Paper size (max) |
L800 * W600mm |
| Paper size (min) |
L150 * W100mm |
| Max cardboard size |
L760 * W560mm |
| Min cardboard size |
L120 * W100mm |
| Max box size |
L400 * W300 * H100mm |
| Min box size |
L80 * W60 * H15mm |
| Paper thickness |
80-350g/㎡ |
| Cardboard thickness |
0.8-3mm |
| Edge folding size |
10-90mm |
| Tuin in depth |
15-80mm |
| Air pressure |
40L/min 0.8MPa |
| Working speed |
15-35 pcs/min |
| Motor power |
14kw/380v 3 phase |
| Heating power |
8kw/380v 3 phase |
| Machine weight |
4000kg |
| Machine dimension |
L7600 * W3800 * H3000mm |
Shipping And Packaging
| Shipping |
By sea, or as your requirement |
| Packaging |
By Strong Wooden Case |
| Packaging Dimensions |
| Case 1 |
Size: 2980mm* 1560mm* 1320mm
Net weight: 1500KG
Gross weight: 1600KG
|
| Case 2 |
Size: 1310mm*1170mm*900mm
Net weight: 250KG
Gross weight: 290KG
|
Frequently Asked Questions
Q: Why Choose Us?
A: As a manufacturer, we adhere to stringent QC standards throughout production. With a dedicated technical and after-sales service team, we strive to exceed your expectations.
- Inquiries are responded to within 24 hours.
- OEM service is available.
- Your designs and information are safeguarded.
Q: Do You Have CNC Workshops?
- Yes, we have our own CNC workshops and produce molds in-house.
Q: Can I Have a Sample Before Ordering?
A: Certainly, free samples can be provided, with freight costs borne by you.
(1) You can use your courier account like DHL/Fedex/TNT, etc.
(2) Arrange for your courier to collect from our office.
(3) You can pay the freight cost via T/T.
Q: Can You Make Customized Paper Cones?
A: Absolutely, please provide us with your sample first.
Q: What's the Delivery Time?
A: Approximately 45 days for machine delivery after receiving your deposit.
Q: Do You Provide Overseas Engineering Services?
A: Yes, we can dispatch engineers to assist with installation and train your staff until the machine operates smoothly.
- We also offer online technical support should any issues arise.
Q: What Are Your Payment Terms?
A: T/T with 30% down payment, balance due before delivery, or LC at sight, D/P, etc.
Q: Do You Hold Any Certifications?
A: Yes, we are certified with CE and ISO standards.
Q: Where Is Your Factory Located? How Can I Visit?
A: Our factory is situated in Wenzhou City, Zhejiang province. We can arrange transportation from Wenzhou Airport, Shanghai Airport, or Wenzhou Station via high-speed rail.
Q: How Can I Reach You?
A: You can reach us via Email/WhatsApp/WeChat/Telephone.
