خانه /محصولات/دستگاه چاپ لیبل/Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight

Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight

1 مجموعه
MOQ
قابل مذاکره
قیمت
Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
قطعنامه: 360*360 نقطه در اینچ تا 1440*360 نقطه در اینچ
سرعت چاپ: 10 متر در دقیقه - 60 متر در دقیقه
سیستم تصویر متغیر: PDF، سیستم بارکد اختیاری
بسترها: کاغذ پوشش داده شده، نوار Washi، PP، PET، فیلم شفاف
گارانتی: یک سال
وزن: 2800 کیلوگرم
برجسته کردن:

288mm Printing Width Digital Label Finishing Machine,330mm Printing Width Varnish Printing Machine,2800KGS Foil Stamping Machine

,

330mm Printing Width Varnish Printing Machine

,

2800KGS Foil Stamping Machine
اطلاعات اولیه
محل منبع: چین
نام تجاری: EcooGraphix
گواهی: CE
شماره مدل: EcooSpark
مدرک: Digital Label Cold Stamping...88.pdf
پرداخت
جزئیات بسته بندی: بسته بندی استاندارد صادراتی
زمان تحویل: 30 روز
شرایط پرداخت: T/T
قابلیت ارائه: 100s
توضیحات محصول
Digital Label Finishing Varnish Printing Foil Stamping Machine
The EcooSpark digital UV varnish printing machine enables digital synergistic processes including digital varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, and braille printing — all without plate making requirements. It is the ideal equipment for digital printing machines such as HP Indigo, Screen L350, KM Accurio, Xeikon, Durst and more.
Applications
  • Stickers
  • Cosmetic Labels
  • Luxury labels
  • Washi tapes
  • Medical label braille
  • Toothpaste tubes
  • Pouches and more
EcooSpark can perform UV spot varnishing, cold foil stamping, braille printing, 3D embossing, variable data printing and more, with no need for plates. It integrates seamlessly with all types of digital label printing presses, flexo printing presses, traditional printing press (roll to roll) and other label printing equipment.
Key Business Benefits
Digital Working Efficiency: No plates required, starts with just 1 label. Setup time reduced to minutes for new jobs, offering significant cost advantages for order fulfillment.
Superior Embellishment Quality: Unlimited design possibilities with extremely fine varnishing and stamping details. Faster and more accurate registration than traditional embellishment technologies.
Multi-Process Integration: Complete foiling, spot varnish, braille and other processes in one operation. Variable scope and shape of varnishes with both highlight and matte effects achievable in single printing.
Environmentally Friendly: Short setup times, simplified operation, and variable data printing capabilities reduce waste and energy consumption.
Key Machine Configurations
  • Full Sets of Mitsubishi servers
  • HeFeng Corona Treatment
  • Web guide and Monitoring System: E+L
  • Full Led-UV curing system
  • Printing Software: GIS UK
  • Auto Cleaning System
  • KM 1024i print head
  • Multiple sensors for tension control
Available in 288mm, 330mm and 430mm printing width models. Most of our machines have been in reliable operation for about 5 years with no trouble, demonstrating stable and perfect performance that pleases our customers.
Technical Specifications
Model EcooSpark
Printing Technology UV Piezo DoD-inkjet
Resolution Up to 1440*360 dpi
Printing Speed 10m/min - 60m/min (depends on polymer layer thickness)
Variable Image System PDF, optimized PDF, Optional barcode system
Supported Image Standards PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing Image Width 288mm (optional 330mm/ 450mm)
Polymer WB-DS-Clear Polymer
Polymer Layer Thickness 10-180 microns
Ink Curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder Diameter Max. 700mm, Core 76mm
Rewinder Diameter Max. 700mm, Core 76mm
Substrates Thickness 30-400 microns
Substrates Width 330mm
Press with Foil Station Dimensions (L*H*W) 3500mm * 1900mm * 1800mm
Operating Environment Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical Requirements Voltage: 3*380, ±5% 3 phases +G+N
Frequency: 50/60 Hz
Current: Avg. 25 Amps in Production
Weight 2800kg
Product Images

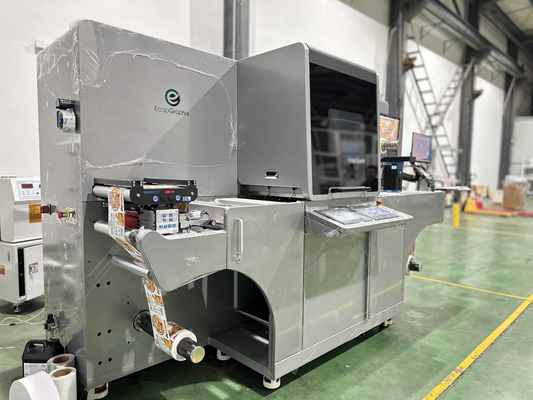

Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight 0
Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight 1
Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight 2
Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight 3
Digital Label Finishing Machine with 288mm Printing Width 330mm Printing Width and 2800KGS Weight 4
